14.3 Skeletal musculature
|
|
|
Origin of the skeletal musculature
|
|
|
|
|
Fig. 9 - Embryo in stage 14,
ca. 33 days |
|
Legend |
|
|
Area of origin for the external
eye musculature |
|
Occipital myotome |
|
Migration of the cells for
the tongue muscles |
|
Cervical myotome |
|
Thoracic myotome |
|
Lumbal myotome |
|
Sacro-coccygeal myotome |
|
|
|
|
|
Fig. 9
The approximate extension of the supply areas of the individual myotomes is shown with various colors
More info
|
Detailed information about the structures of this diagram.
|
|
|
The somites and the myotomal derivates that come from them according to their level - form the somatic musculature. The occipital myotomes (4, light green) mainly form the pharynx (throat) and upper or anterior neck musculature, including the tongue muscles. They are also responsible for the musculature in the occipital head region. From the cervical myotomes (8, orange) the neck and shoulder musculature form. They are followed by the thoracic myotomes that form the musculature of the upper extremities and breast and abdominal wall musculature. The lumbal myotomes (5, light blue) are responsible for the formation of the musculature in the lower extremities. Finally follow the sacral and coccygeal myotomes (5 sacral and 4-5 coccygeal, green) that form the muscles in the lower pelvis and gluteal region.
|
|
|

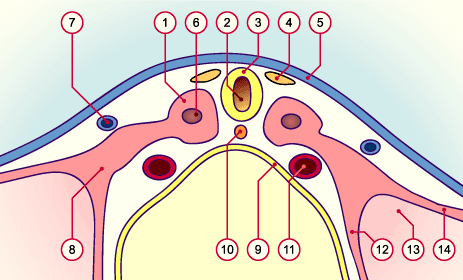

Fig. 10 - Stage 10, ca. 28 days |
|
Legend |
1
2
3
4
5
6
7
8
9
10
11
12
13
14 |
Somite
Central canal of the neural tube
Neural tube
Neural crest
Ectoderm
Somitocoel
Umbilical vein
Intermediary Mesoderm
Endoderm
Notochord
Dorsal aorta (paired)
Splanchnopleura
Coelom
Somatopleura |
|
|
|
Fig. 10
The somites with the somitocoel are formed out of the paraxial mesoderm. In this stage the intermediate mesoderm is also now visible. The embryo begins to fold laterally. The lateral mesoderm has divided into splanchno- and somatopleura. In this cross-section the neural crest cells are also shown schematically. From them come a large variety of cells and tissues.
|
|
|
