1
2
3
4
5
6
7
8 |

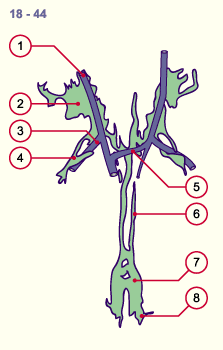

Superior cardinal vein
(jugular vein)
Jugular lymphatic sacs
Right subclavian vein
Axillary lymphatic sacs
Left brachiocephalic vein
Thoracic duct (bilateral)
Lumbar lymphatic sacs
Iliac lymphatic sacs |
|
|
|
1
2
3
4
5
6
7
8
9
10
11
|

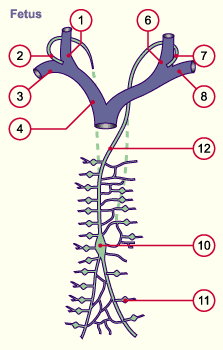

Right jugular vein
Right jugular and
axillary lymphatic plexus
Subclavian vein
Superior vena cava
Right thoracic duct
Left jugular vein
Left jugular and axillary
lymphatic plexus
Left subclavian vein
Left thoracic duct
Cysterna chyli
Inguinal lymphatic plexus |
|
|
|

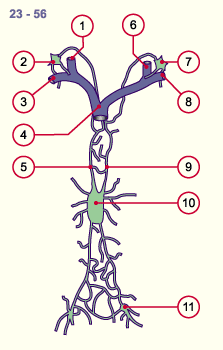

Fig. 31
The development of the lymphatic systems at the 6th week. Three bilateral lymphatic sacs (jugular, axillary and lumbo-iliac) as well as the incompletely formed lymphatic vessel plexus are shown.
Fig. 32
The most important lymphatic vessels arise bilaterally and form a fine network.
The site where plexuses are located transform later into lymph nodes, the lymph filtering stations.
|
